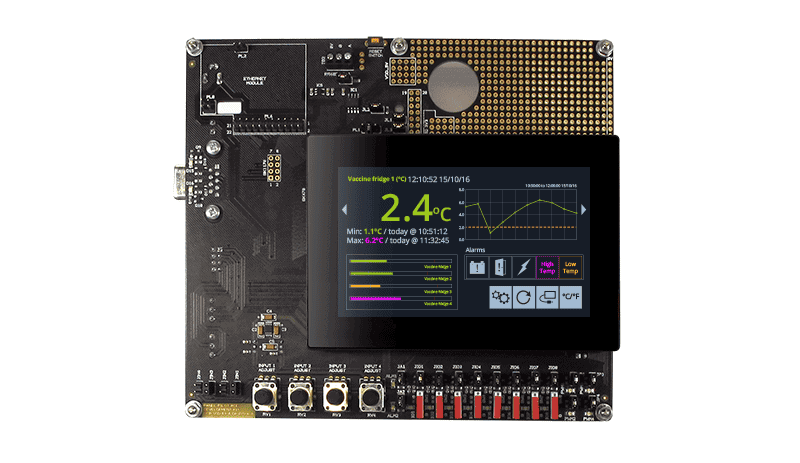

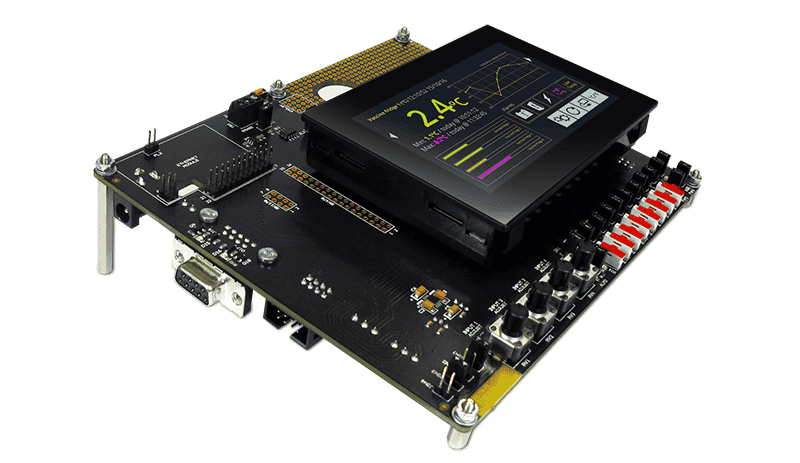

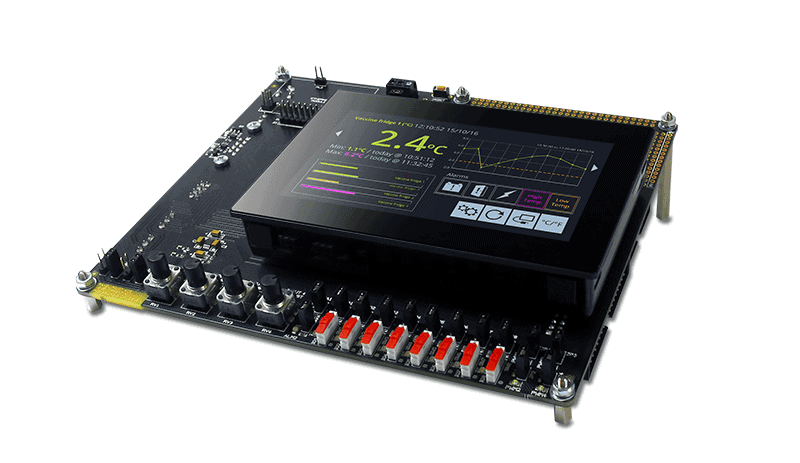

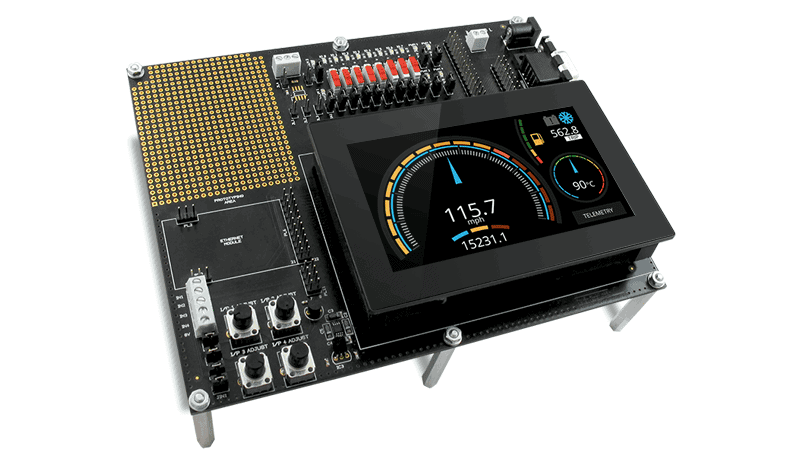

The SGD 43-A DK+ is a complete 4.3” HMI development kit designed to help you quickly prototype and test projects using the SGD 43-A display. It includes the display, a development board and a USB cable, providing everything needed to get started straight out of the box.

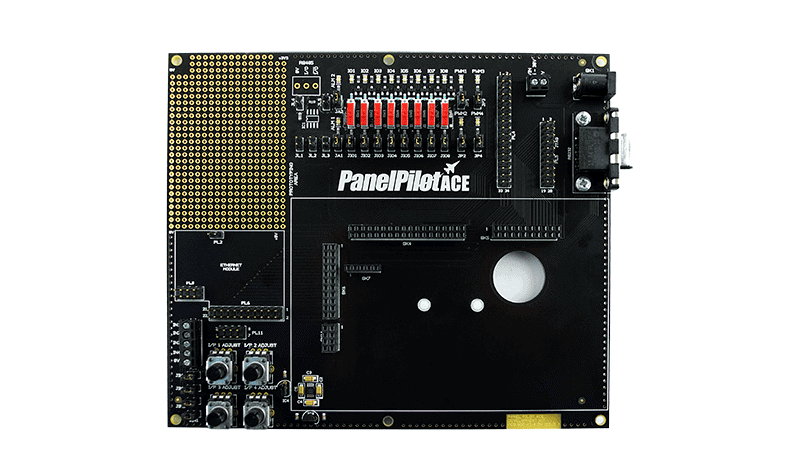

The development board offers a wide range of built-in components and connections that match the full input and output functionality of the SGD 43-A. You can simulate inputs using onboard switches, variable analogue dials, LEDs and digital I/O toggles. The board also supports PWM outputs with brightness-controlled LEDs, alarm outputs with status indicators and screw terminal access for external circuitry.
Serial interfaces including RS232 (via D-sub), RS485, SPI and I²C are also available, with headers or screw terminals for each (SPI and I²C pending software support). A dedicated prototyping area is provided for custom circuitry and the whole system is powered via USB or an external 5–30V DC supply.
Ideal for engineers, testers and OEMs developing with the SGD 43-A, this kit simplifies HMI development and hardware interfacing from the start.
