SGD ADPT-TC

£25.85 ex. tax

  • Thermocouple add-on module
  • Supports K, J, and T types up to 1350°C
  • Powered directly from SGD display
  • Cold-junction compensation included
SGD ADPT-TC | Thermocouple Add-On | Display Solutions | Front
SGD ADPT-TC £25.85 ex. tax

Questions? Request a Call Back

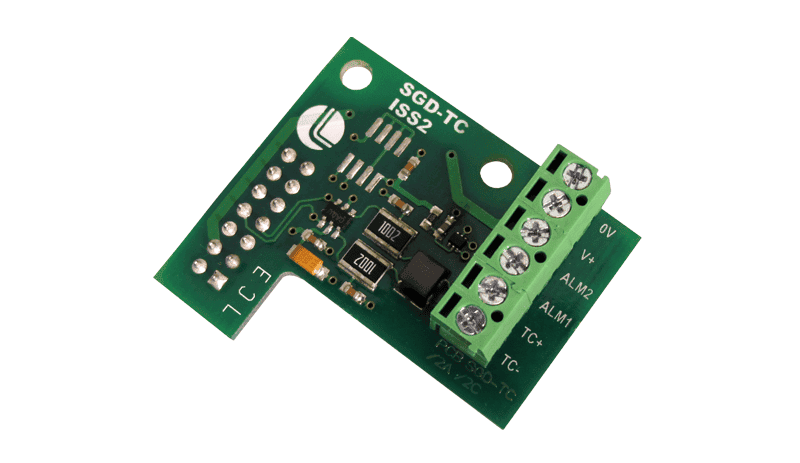

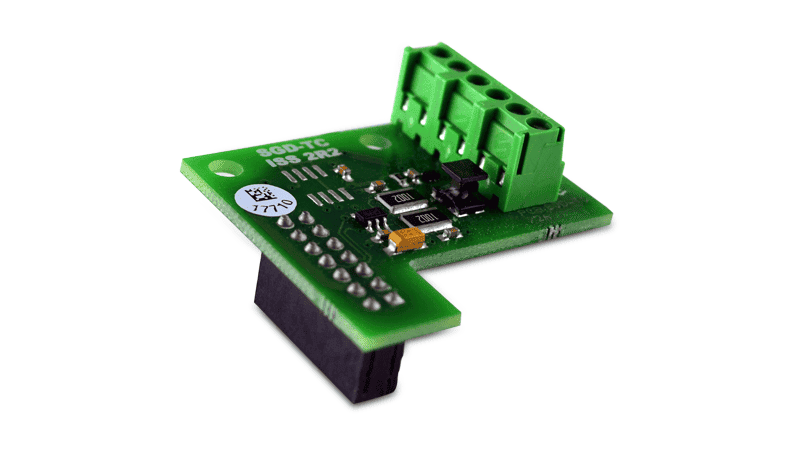

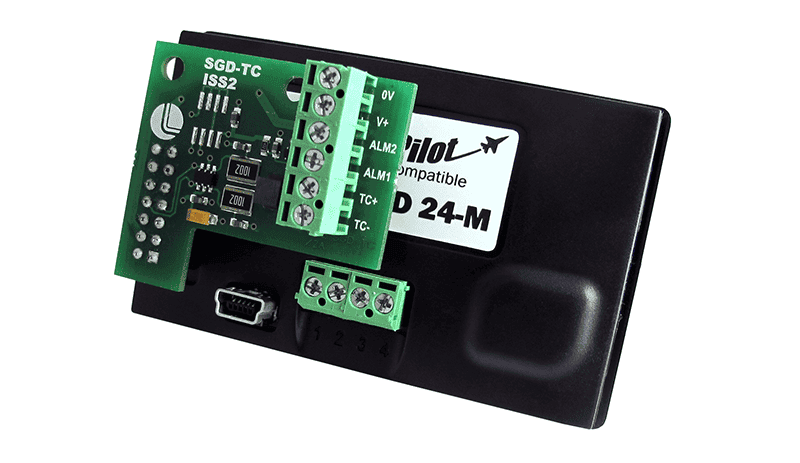

The SGD ADPT-TC is a thermocouple add-on module for PanelPilot-compatible displays. It supports K, J and T-type thermocouples with ranges up to 1350°C. The module includes cold-junction compensation and is powered directly from the SGD display. Thermocouples connect via screw terminals, and alarm limits can be set through the PanelPilot software. Users can select thermocouple type and display in °C or °F.

PanelPilot display not included.

Operating Temperature Range -10 to 40 °C (14 to 104 °F)
K-Type Probe Measurement Range -200 to 1350 °C (-328 to 2462 °F)
J-Type Probe Measurement Range -200 to 1190 °C (-328 to 2174 °F)
T-Type Probe Measurement Range -200 to 390 °C (-328 to 734 °F)
SKU: SGD ADPT-TC Category:
