PanelPilot M Software
Configure and customise your display in minutes
Download PanelPilot for Windows, version 2.40, the free software for creating and customising interfaces for the M-Series range of PanelPilot displays. Compatible with Windows 10 and 11, it includes the latest Meter Pack update files, making it perfect for both online and offline installation.
Download PanelPilot M Software: Version 2.40
A Custom Display in Just a Few Clicks
PanelPilot M software is a powerful Windows-based configuration platform designed to give you full control over your M-Series display. With more than 40 pre-built configurations to choose from (Including bar graphs, tank levels, analogue dials and trend graphs) you can quickly build a tailored interface to suit your application.
Customise colour schemes, input scaling, units and text labels, then upload your setup directly to your display using a USB connection. Whether you’re working in digital, analogue, or bar graph styles, this software gives you the flexibility and control to create professional-looking interfaces without complex development work.
Six Simple Steps to Build Your Interface

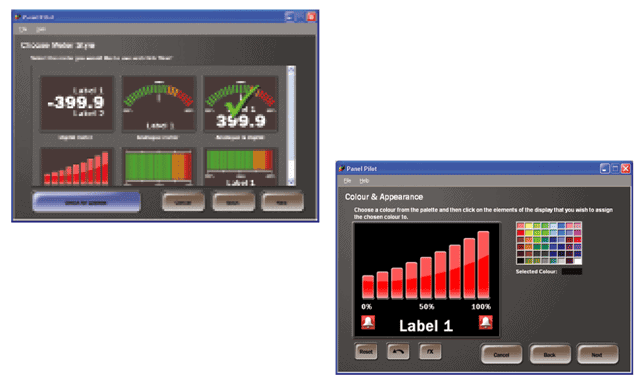

1. Choose a Configuration
Select from a growing library of templates, including analogue, digital and dual-input styles. Every time you launch the software, it automatically checks for and includes the latest updates.
2. Customise Colours & Labels
Fine-tune colours for each visual element. Add gradient effects where supported and fully edit text labels to suit your application.

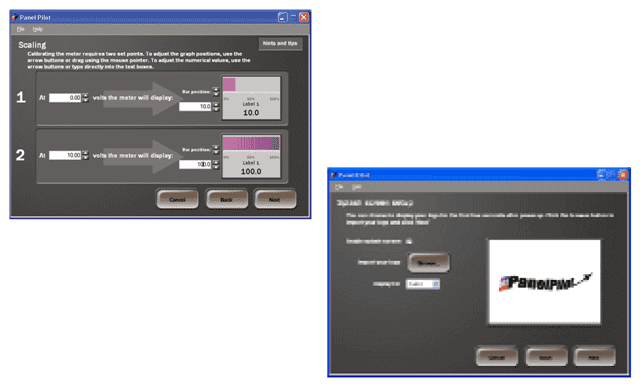

3. Set Input Scaling
Configure voltage input levels directly in the software, eliminating the need for external scaling resistors (up to 40V DC).
4. Add a Start-up Screen
Upload a logo or custom image to appear on power-up for a branded or informative start-up experience.

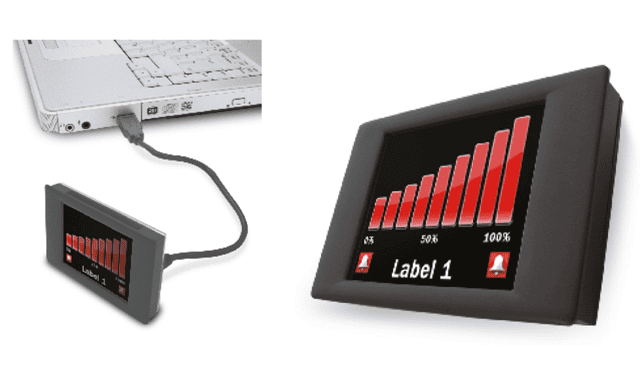

5. Upload to Your Device
Connect your PanelPilot M-Series display via USB and transfer your customised setup with a single click.
4. Ready to Go
Your display is now fully configured. Need to make changes? Just reconnect and update anytime.
Need Support?
Whether you’re installing for the first time or tweaking an existing setup, our team is here to help. If you have questions about compatibility, setup, or configuration – Get in touch!
