PanelPilot B Software
Customise your B-Series display in minutes
PanelPilot B Software is a free, intuitive tool that lets you set up and personalise your B-Series device. Compatible with Windows 10 and 11, the software allows you to select your application type, adjust scaling and labels and upload a splash screen, all in just a few clicks.
Download PanelPilot B Software: Version 1.04
Configure Your Display with Ease
Designed to work seamlessly with the B-Series devices, PanelPilot B Software offers a clear, user-friendly interface that guides you through the setup process. Once installed, you can:
- Select your meter type and customise text/unit labels

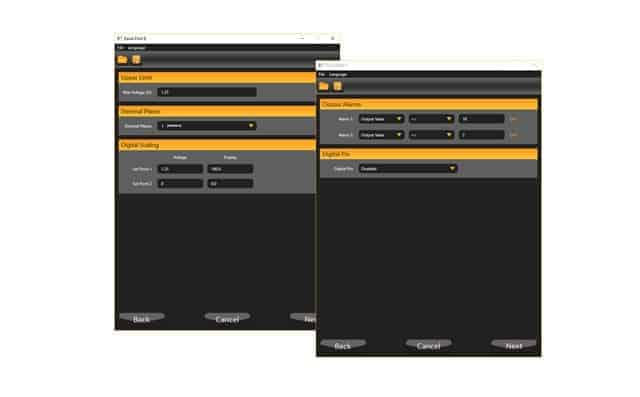

- Set input scaling and calibration at two points
- Choose decimal point placement during scaling
- Add a custom splash screen or logo for power-up
- Configure a digital pin for additional control options
Your entire configuration can be uploaded directly to your display via USB.
Create Your Application in 4 Simple Steps

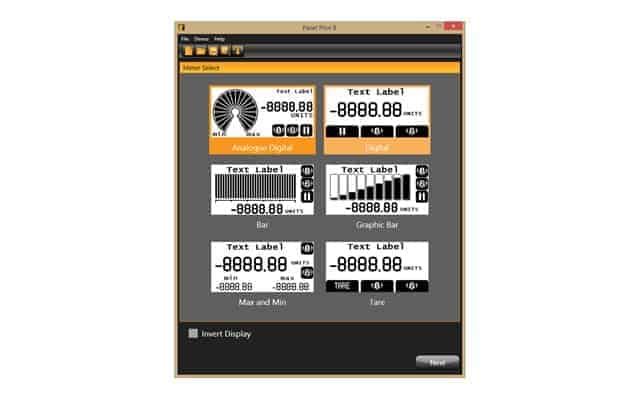

1. Select Your Application
Pick from six popular layouts; including analogue meters and bar graphs.

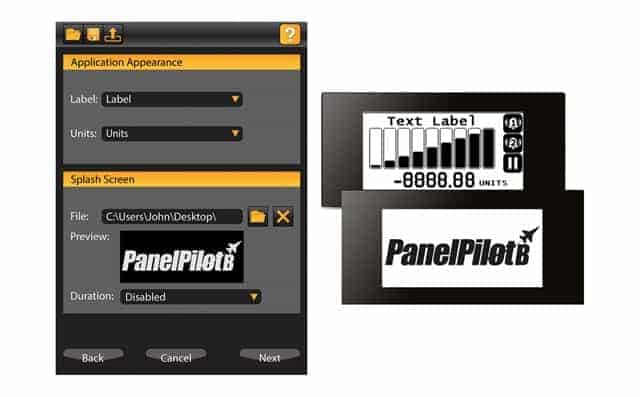

2. Adjust Appearance
Choose your colour theme (black on white or inverted), set labels and fine-tune scaling.
3. Add a Splash Screen
Upload a logo or image to appear when your device powers on.

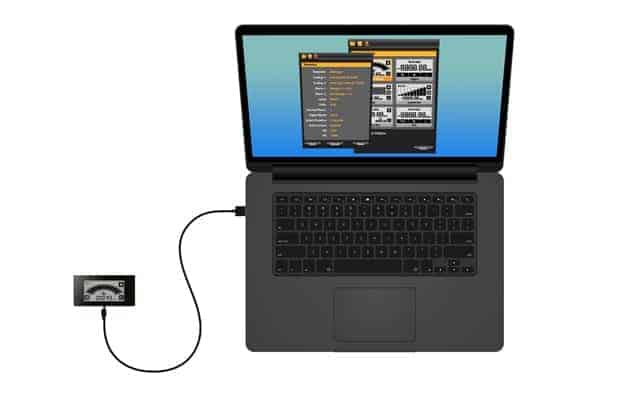

4. Upload and Go
Connect your B-Series display to your PC and upload the configuration. That’s it.
Need a Hand?
If you need help installing or configuring your B-Series display, our support team is here for you. Get in touch with our team; we’re here to help you.
