PanelPilot Software
Whether you’re designing advanced touchscreen interfaces or configuring compact displays, this is your starting point. Below you’ll find the right tools for each PanelPilot range. From drag-and-drop design software to essential device utilities and updates.
Quick Links
PanelPilotACE Design Studio
Design Studio is our powerful, free-to-download software for creating bespoke user interfaces on PanelPilotACE displays. With its intuitive drag-and-drop editor, you can design smart control panels, data loggers and more — without writing a single line of code.
Supports the EL-SGD 43-ATP and 70-ATP.
Latest version: 4.0.2.4064.
Other PanelPilotACE Softwares
PanelPilotACE Device Utility
Built for customers using the EL-SGD 43-ATP and 70-ATP displays, the Device Utility gives you the tools to manage runtime files, firmware, data logging, and real-time clock syncing. It’s especially useful when working with temperature probe extensions and other external modules.
Latest version: 1.0.2.25. Supports Windows 10 and 11.
PanelPilotACE Device Software
Keep your PanelPilotACE displays up to date with the latest device software. Version 4.0.2.4064 gives you full control over the firmware upgrade process, helping ensure optimal performance and compatibility across your projects.
Latest version: 4.0.2.4064. Supports Windows 10 and 11.

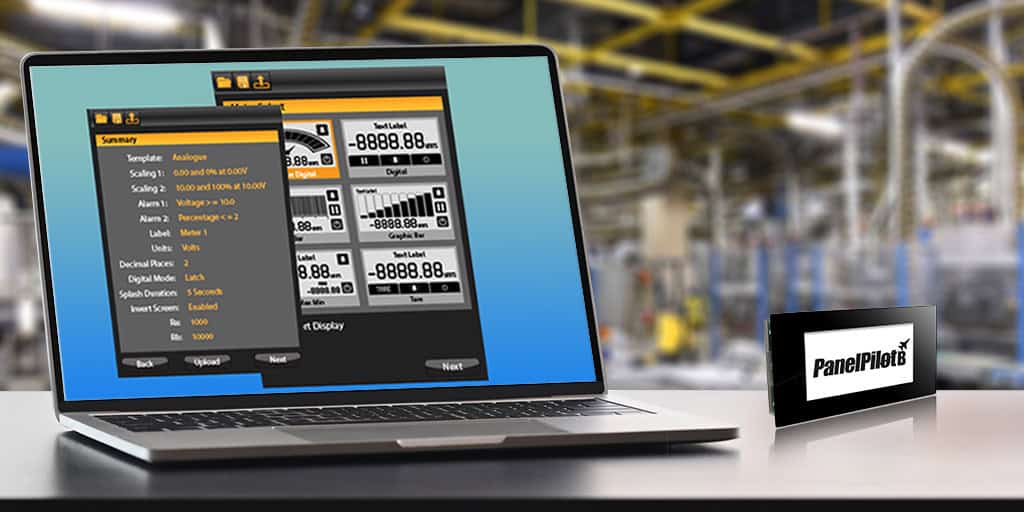

PanelPilot B
Set up and personalise your B-Series device in just a few clicks. Version 1.04 of the free PanelPilot B Software supports Windows 10 and 11, making it easy to configure scaling, labels, splash screens and more; no technical expertise required.

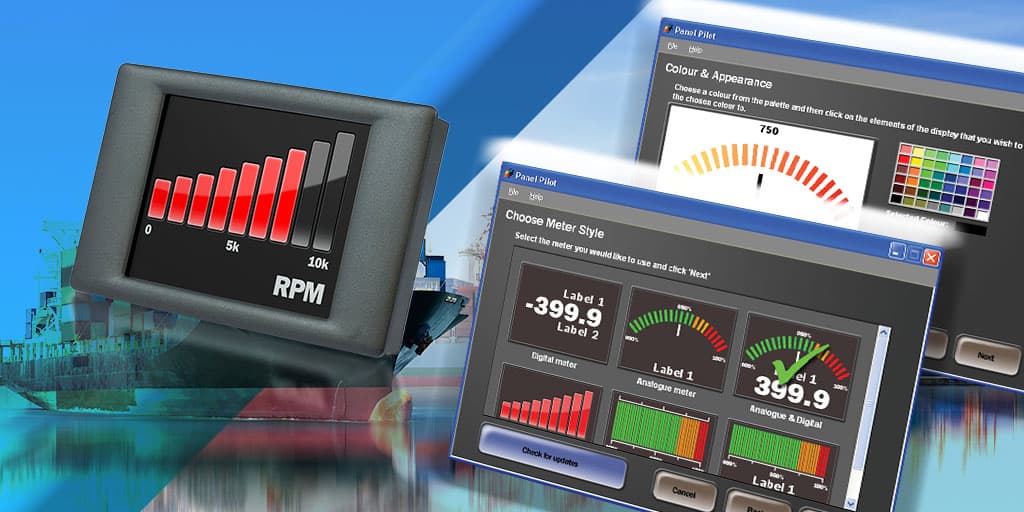

PanelPilot M
PanelPilot M Software (version 2.40) is the free Windows-based tool for configuring M-Series PanelPilot displays. Choose from over 40 pre-built layouts, customise colours, scaling and labels, then upload via USB. Includes the latest Meter Pack update files for both online and offline use.
