SGD 43-A | Display Screen | Display Solutions | Front SGD 43-A £199.99 ex. tax

SGD 43-A-RTC

£205.25 ex. tax

  • Runtime counter with 4.3″ touchscreen
  • Supports up to three service schedules
  • Amber and red alerts at 80% and 100%
  • Alarm output for external notifications
SGD 43-A-RTC | Display Screen | Runtime Counter | Display Solutions | Front
SGD 43-A-RTC £205.25 ex. tax

Questions? Request a Call Back

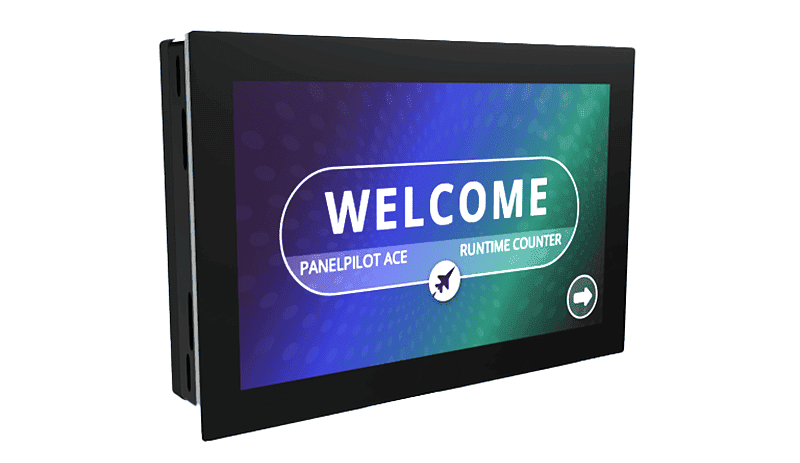

The SGD 43-A-RTC is a panel-mounted runtime counter with a 4.3″ capacitive touchscreen. Designed to monitor scheduled maintenance, cleaning or calibration, it supports up to three independent schedules. Visual alerts appear as time elapses and an alarm output can trigger external systems. Ideal for time-based service tracking in industrial and commercial equipment.

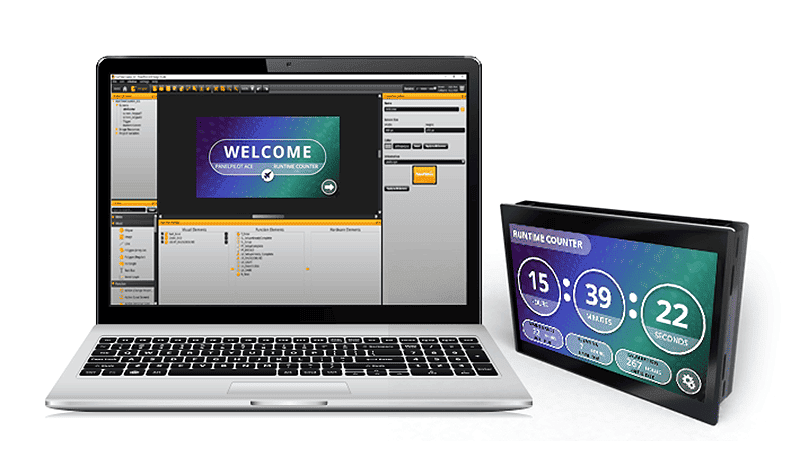

Panel mounting kit and USB cable included. Software downloadable separately.

Operating Temperature 0 to 40°C
Supply Voltage 5 to 30V d.c.
Trigger Voltage (Set on device) 30V d.c. (max)
Maximum Schedule Time 999 hours
Alarm Output Voltage (High) 2.6 to 3.3V
Alarm Output Voltage (Low) 0 to 0.4V
Alarm Output Current 10.0mA (max)
SKU: SGD 43-A-RTC Category:
