SGD 35-M420

£105.25 ex. tax

  • Current loop indicator device
  • 3.5 inch colour touchscreen
  • USB programmable via software
  • Simple panel mount fitting

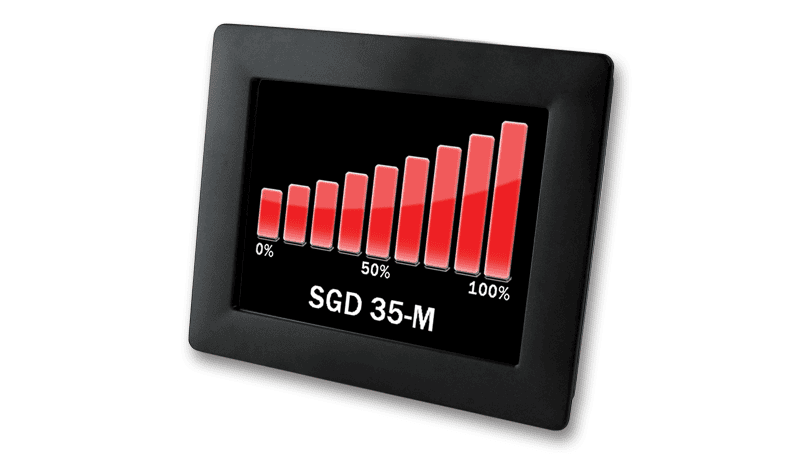

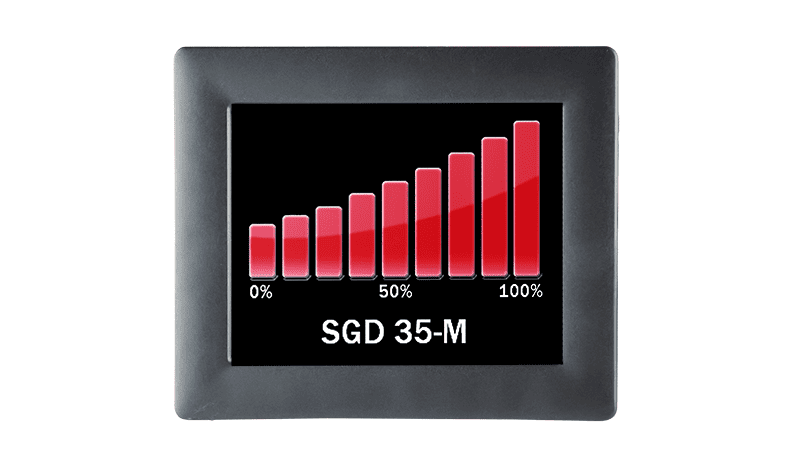

SGD 35-M420 | Display Screen | Current Loop Indicator | Display Solutions | Front
SGD 35-M420 £105.25 ex. tax

Questions? Request a Call Back

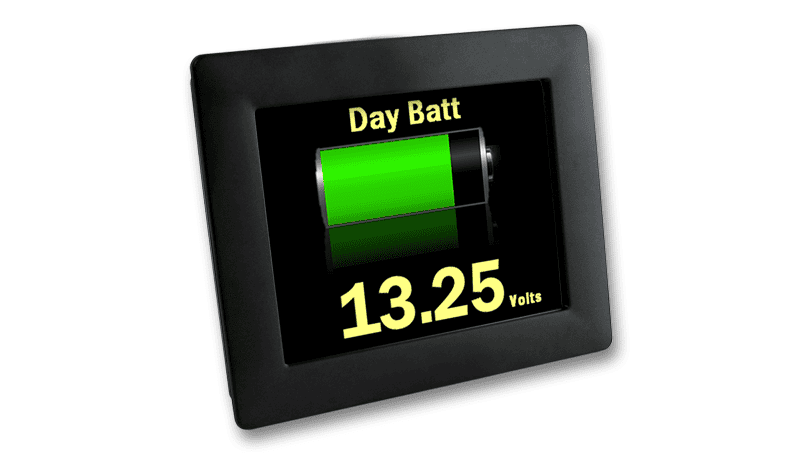

The SGD 35-M420 is a current loop indicator and programmable process meter featuring 4-20mA analog inputs, alarm outputs and a 3.5 inch colour TFT touchscreen display. It is configured using free Windows software to select from various display modes including bar graphs, tank levels and trend graphs. The display is customisable with colours, labels and scaling and uploads settings via USB. Easy to mount with a silicone seal and flexible power supply from 4V to 30V d.c., this current loop indicator is ideal for process control and industrial use.

Display 3.5” colour TFT screen
Resolution 320 x 240 pixel (QVGA)
Operating Voltage 4 to 30V d.c.
Measurement Range 4 to 20mA
Viewing Area 70.1 mm (2.8”) x 52.7 mm (2.1”)
SKU: SGD 35-M420 Category:
