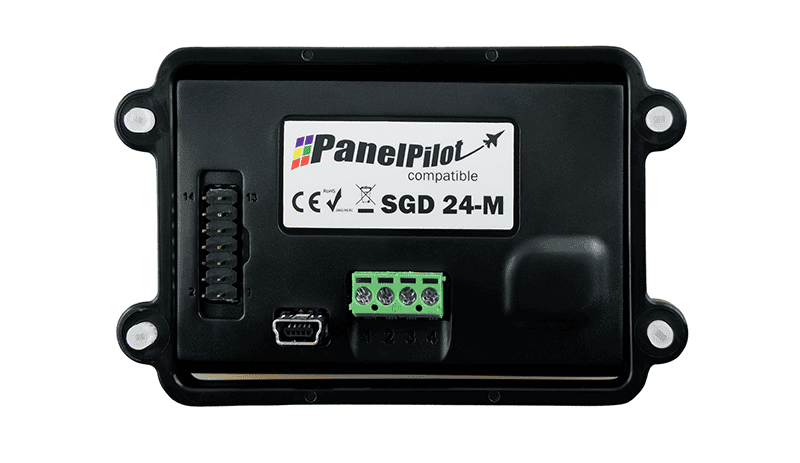

SGD 24-M

£69.99 ex. tax

Voltage panel meter with touchscreen
Dual voltage inputs
USB setup via free software
Simple panel mounting

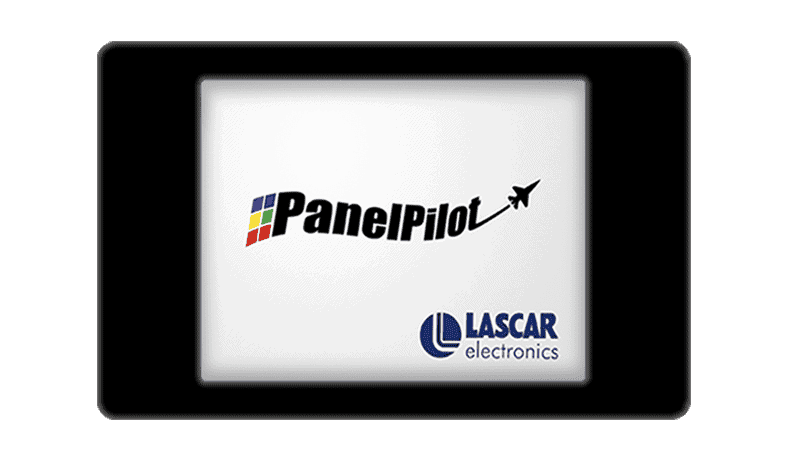

The SGD 24-M is a programmable voltage panel meter with a 2.4 inch colour touchscreen, dual input channels and USB configuration. Designed for flexibility, it supports a wide input range from 0 to 40V DC and is customised using free PanelPilot software. Choose from a range of pre-designed voltmeter styles, adjust colours and labels, then upload via USB. Simple panel mounting and digital hold function make it ideal for embedded or test applications.

Display	2.4” colour TFT screen
Resolution	320 x 240 pixel (QVGA)
Operating Voltage	4 to 30V d.c.
Measurement Range	0 to 40V d.c.
Viewing Area	49.5 mm (1.9”) x 38 mm (1.5”)

Accessories
Accessories

SGD ADPT-420
£39.50 ex. tax
- Dual-channel 4–20mA input module
- Isolated inputs for signal protection
- Powered directly from the SGD meter
- Screw terminal connection for easy setup
Add to basket
Accessories
Accessories

SGD ADPT-TC
£25.85 ex. tax
- Thermocouple add-on module
- Supports K, J, and T types up to 1350°C
- Powered directly from SGD display
- Cold-junction compensation included
