SGD 21-B

£47.50 ex. tax

  • 2.1″ Single-channel e paper voltmeter
  • Monochrome display
  • Sunlight readable and ultra low power
  • Front panel rated IP54
SGD 21-B | PanelPilotB Support | Display Screen | E Paper Voltmeter | Display Solutions | Front
SGD 21-B £47.50 ex. tax

Use this option if you have a requirement for higher quantities of this product.

Questions? Request a Call Back

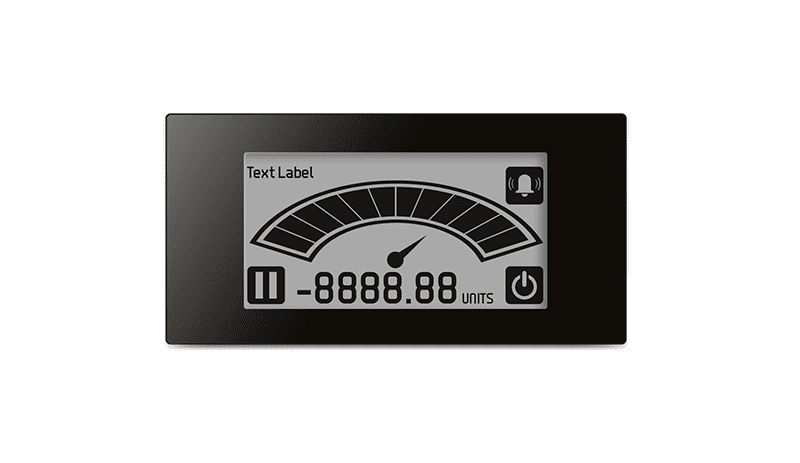

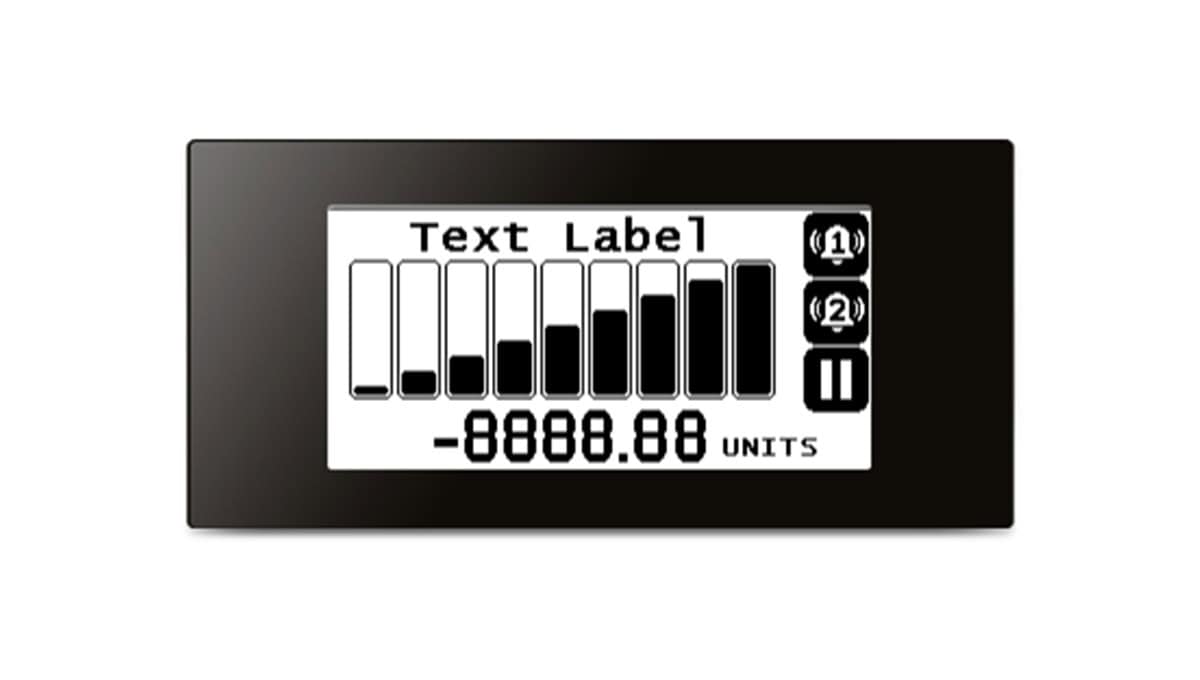

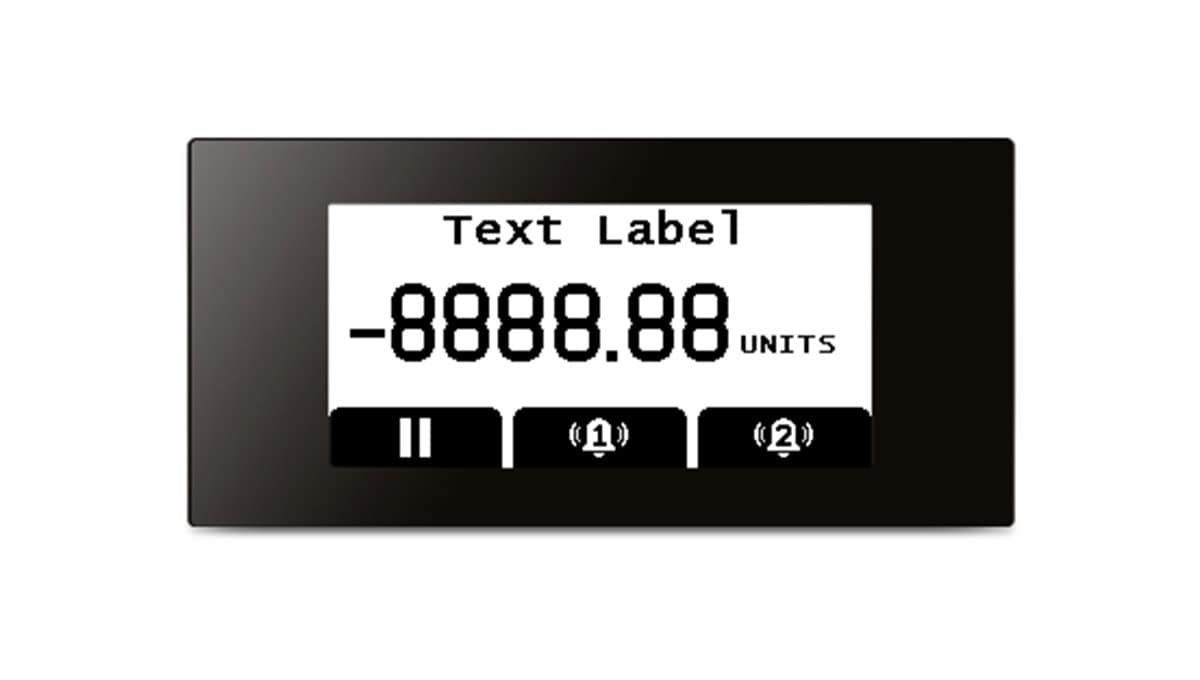

The SGD 21-B is a single-channel e paper voltmeter with a sleek, low-power design and ultra-readable monochrome display. Ideal for bright light environments, it supports a range of analogue and digital voltmeter apps via free PanelPilot B software. Configure alarms, scaling and labels, then upload via USB. Front panel is rated IP54 for light dust and water resistance, and mounting is simple using the included clip.

Display 2.1″ e-paper dot matrix display
Resolution 250 x 122 pixels
Measurement Range 0 – 30V d.c. Refer to data sheet for scaling options and configuration instructions
Measurement Range: 4 – 20mA Fit additional scaling resistor Ra = 62Ω. Refer to data sheet for scaling options and configuration instructions
Measurement Range: Other Ranges For voltages greater than 30V external scaling resistors can be used
Operating Voltage 4 to 9V d.c.
Supply Current (Typical) 3mA
Viewing Area 48.3mm (1.9″) x 23.7mm (0.93″)
SKU: SGD 21-B Category:
