SGD 70-A DK+

£484.50 ex. tax

  • 7” PanelPilotACE development kit
  • Includes display board cable and PSU
  • Built-in I/O test features
  • RS232 RS485 SPI and I²C support
SGD-70-A-DK | Development Kit | Display Solutions | Front
SGD 70-A DK+ £484.50 ex. tax

Use this option if you have a requirement for higher quantities of this product.

Questions? Request a Call Back

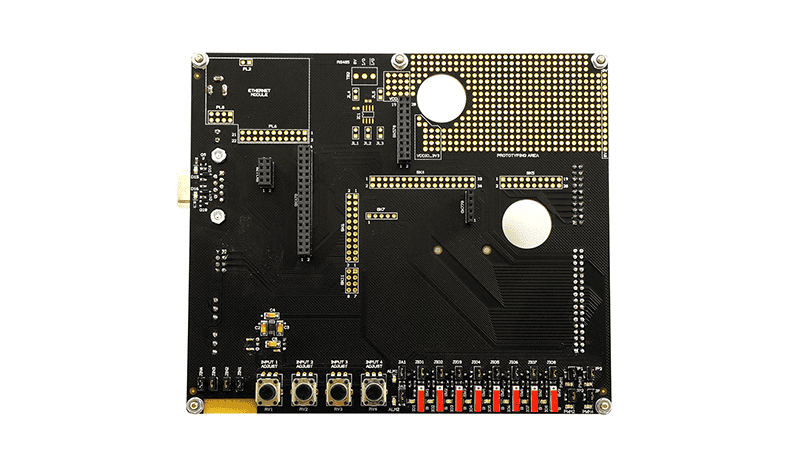

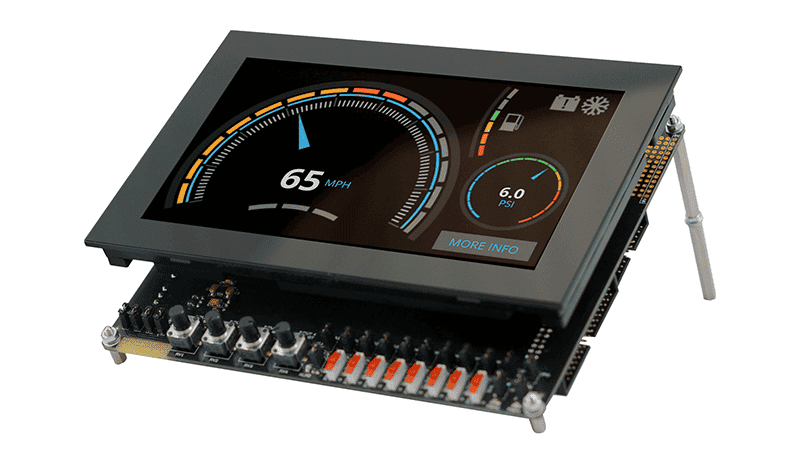

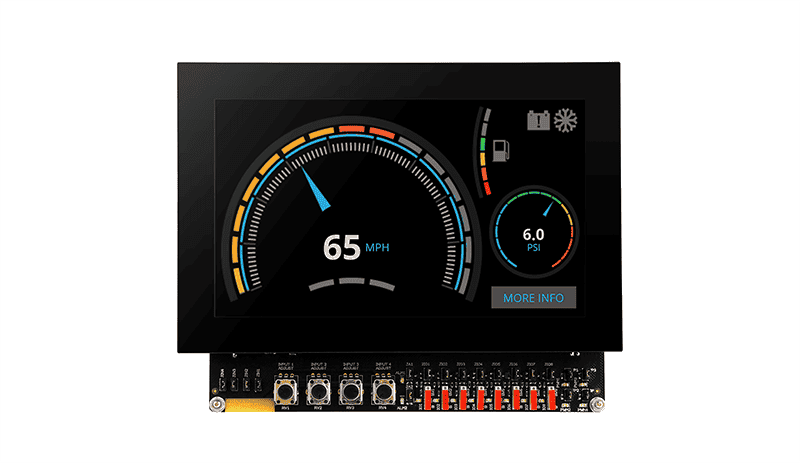

The SGD 70-A DK+ is a complete development kit for the 7” SGD 70-A PanelPilotACE display. Designed to speed up interface development and testing, the kit includes a display, development board, USB cable and power supply. The board features LEDs and switches for digital I/O testing, four potentiometers for generating analogue inputs, variable brightness LEDs for PWM outputs and a prototyping area for custom circuitry. It also provides easy access to the display’s RS232, RS485, SPI and I²C communication functions. This is the ideal starting point for building and testing advanced graphical interfaces with PanelPilotACE.

Analog Inputs x4
Digital Input/Outputs x8
PWM Outputs x4
Alarm Outputs x2
Serial Bus Connections RS232 & RS485
Supply Voltage 5 to 30V d.c.
Outside Dimensions 181mm (7.1”) x 147mm (5.8”) x 64mm (2.5”)
  • PanelPilotACE

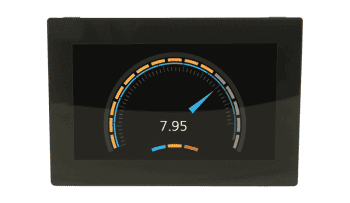

    SGD-70-A | Display Screen | Capacitive Touch Display | Display Solutions | Right Angle | PanelPilotACE Support

    SGD 70-A
    £339.99 ex. tax
    • 7” capacitive touch display
    • Multi I/O including RS232 RS485 and PWM
    • Code-free display design with free software
    • Features PID control and data logging
    Add to basket
  • Accessories

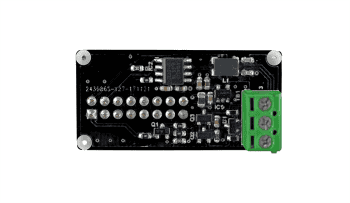

    S70-CAN | Add-On Board | CAN bus interface | For SGD 70-A | Display Solutions | Front

    S70-CAN
    £34.50 ex. tax
    • CAN bus interface for SGD 70-A
    • Adds 3-wire CAN communication
    • Simple rear mounting design
    • Ideal for industrial and control systems
    Add to basket
  • Accessories

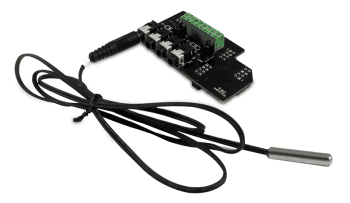

    S70-TP | Add-On | With Probe | Temperature Input Module | Display Solutions
