S70-TP

£39.50 ex. tax

  • Four-channel temperature input module
  • Designed for SGD 70-A displays

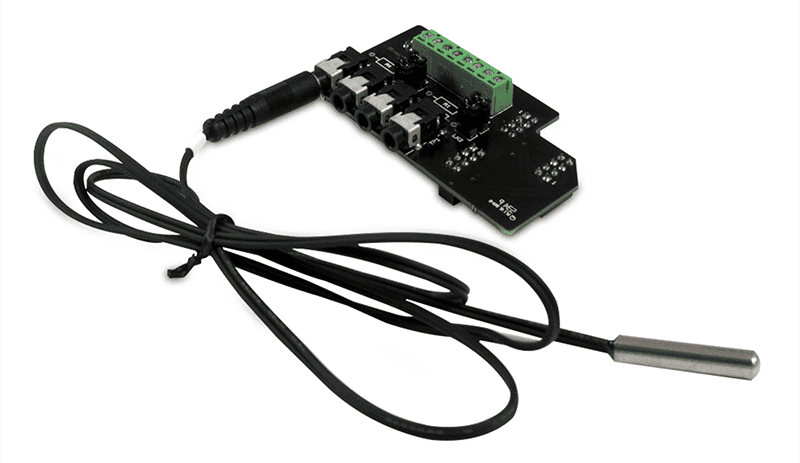

  • Includes 1m thermistor probe
  • Mounts directly to rear of display

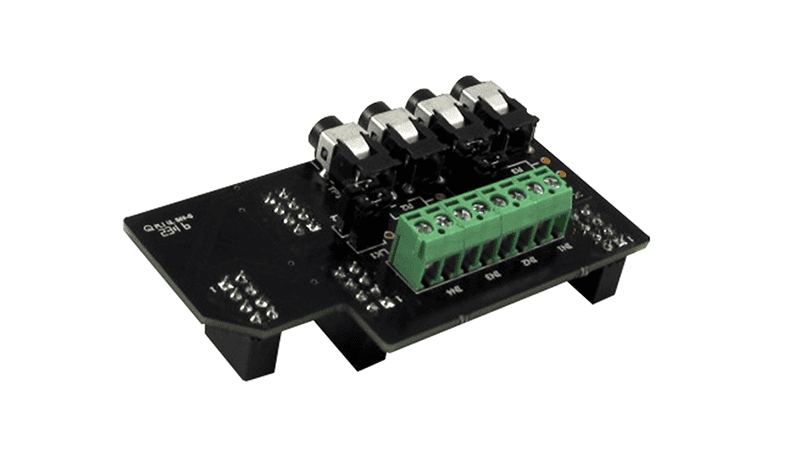

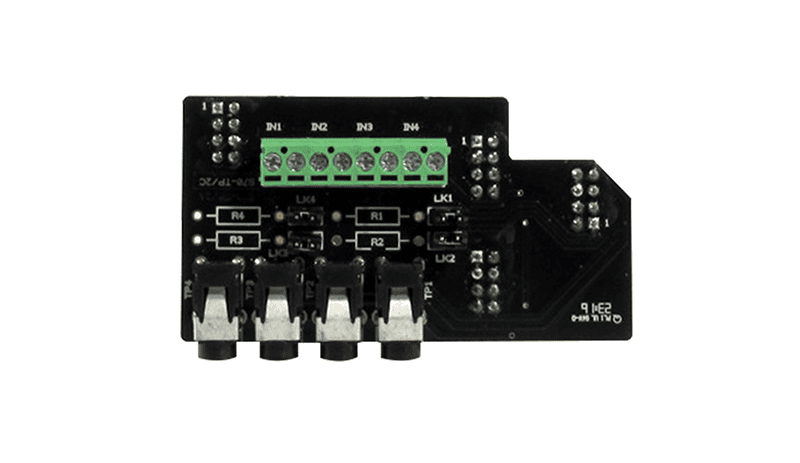

S70-TP | Add-On | With Probe | Temperature Input Module | Display Solutions
S70-TP £39.50 ex. tax

Use this option if you have a requirement for higher quantities of this product.

Questions? Request a Call Back

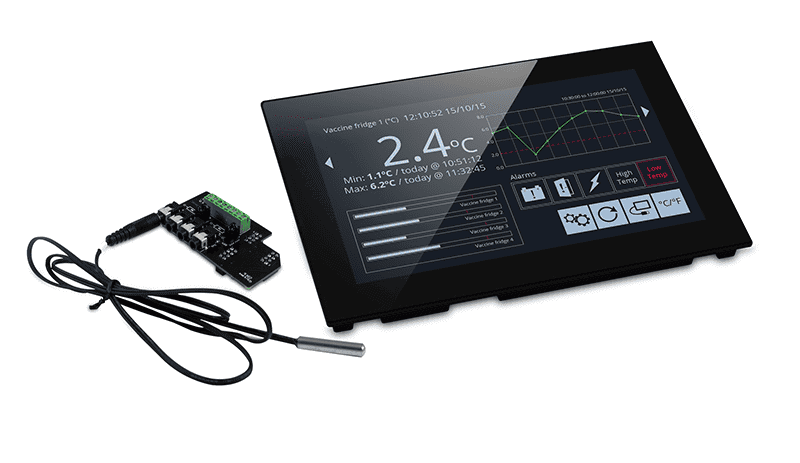

The S70-TP is a four-channel temperature input module for use with the SGD 70-A display. It mounts to the rear of the display and adds up to four thermistor inputs, enabling temperature measurement, logging and graphing within the free PanelPilotACE Design Studio software. Supplied with a 1m thermistor probe, the S70-TP is easy to set up and ideal for multi-channel temperature applications.

Supplied Probe Measurement Range -40°C to +80°C (-40°F to +176°F)
Internal Resolution 0.01°C (0.01°F)
Temperature Accuracy ±1.0°C (±2.0°F)
Number of Channels Up to 4
  • PanelPilotACE
    SGD-70-A | Display Screen | Capacitive Touch Display | Display Solutions | Right Angle | PanelPilotACE Support

    SGD 70-A
    £339.99 ex. tax
    • 7” capacitive touch display
    • Multi I/O including RS232 RS485 and PWM
    • Code-free display design with free software
    • Features PID control and data logging
    Add to basket
SKU: S70-TP Category:
